| HARDWARE FEATURES | |
|---|---|

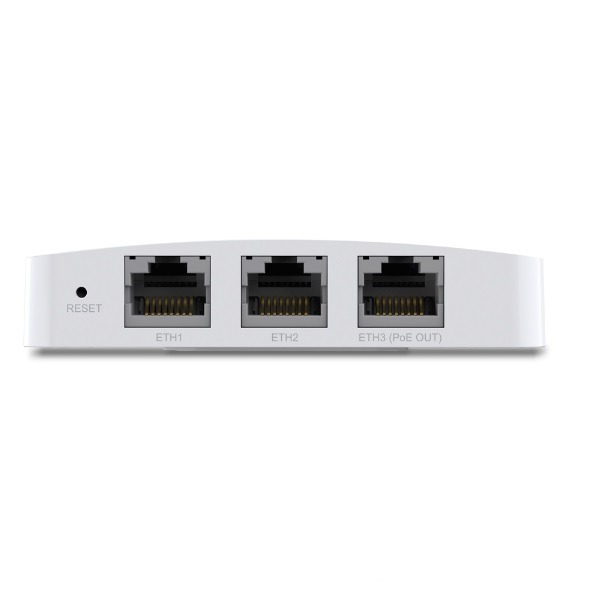

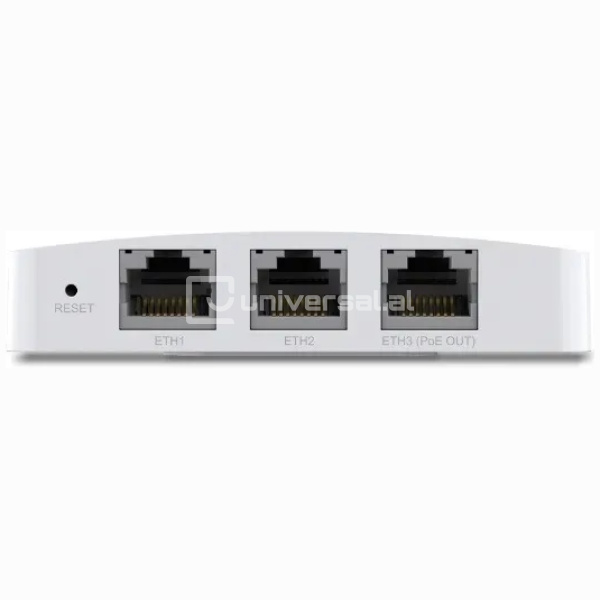

| Interface | 1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD) 2 × 10/100Mbps Ethernet Port 1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af or 802.3at PoE |
| Power Consumption | 9 watts or 25.5 watts including PoE Out |
| Dimensions | 5.6 × 3.4 × 0.8 in. (143 × 86 × 19.7mm) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi |

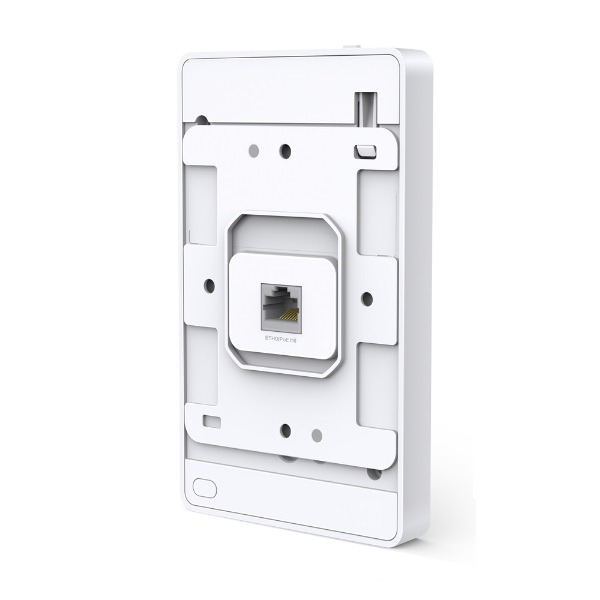

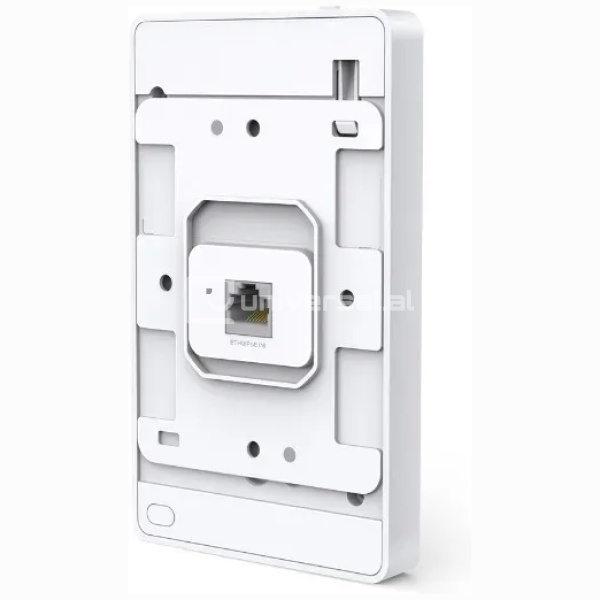

| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | 16 SSIDs（Up to 8 SSIDs on each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | 21dBm max. (2.4 GHz) 21 dBm max. (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
