Image Sensor | CMOS 752*480 |
Memory Flash | 1MB |
Illumination | 612nm-624nm red LED |
Aiming | 650nm laser diode |
Depth of Field EAN 13 (13mil) | 60-380mm |
Depth of Field CODE 39 (5mil) | 60-190mm |
Depth of Field PDF417 (6.67mil) | 85-150mm |
Depth of Field Data Matrix (10mil) | 85-140mm |
Depth of Field QR (15mil) | 40-190mm |
Minimal Print Contrast | 20% |
Scan Angle Roll | 360° |
Scan Angle Pitch | ±55° |
Scan Angle Skew | ±55° |
Field of View Horizontal | 36° |
Field of View Vertical | 23° |
Scan Modes | Trigger |
Scan Rate | 60 frames per second |
1D | All major 1D symbologies, including Code 128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 25, ITF-6, ITF-14, Deutsche 14, Deutsche 12, COOP 25, Matrix 25, Industrial 25, Standard 25, Code 39, Codabar/NW7, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databar. |
2D | All major 2D symbologies, including PDF417, QR Code, Data Matrix. |

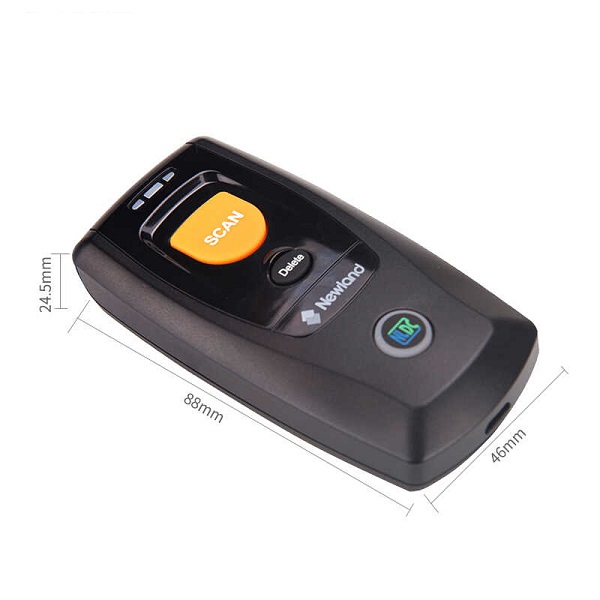

Dimensions (mm) | 88.0(L)×46.0(W)×24.5(H)mm |
Weight | 62g |
Material | PMMA, ABS |

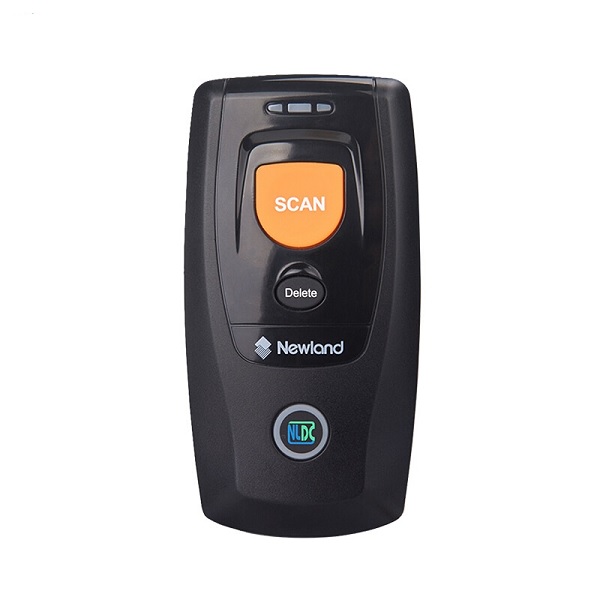

Buttons | SCAN,Delete,Function |
Interfaces | Micro USB, Bluetooth HID/SPP/BLE profiles |
Battery Type | 3.7V 900mA rechargeable Li-ion battery |
Expected Battery Life | 6 hours of continuous operation |
Expected Charge Time | 3.5 hours|3.5 hours |
Notifications | Sound, LED and vibration |
Input Voltage | 5VDC±5% |
Current @ 5VDC Operating | 260mA (Bluetooth is on) |
Current @ 5VDC Standby | 10mA |
Power Supply Input | DC 5V, 500mA |
Power Supply Output | AC100 ~ 240V, 50~60Hz |
Operating Temperature | -20℃ to 50℃ (-4°F to 122°F) |
Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
Humidity | 5%~95% (non-condensing) |
Electro Static Discharge (ESD) | ±8 KV (direct discharge); ±15 KV (air discharge) |
Drop | 1.2m |
IP Rating | IP42 |
WPAN RADIO | 2.4 – 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR |
Wireless Distance (max.) | 50m (open space) |
