WIRELESS | |
---|---|
Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 2 Bedroom Houses
4× Fixed Antennas |
WiFi Capacity | Medium
Dual-Band |
Working Modes | Router Mode Access Point Mode Range Extender Mode |
HARDWARE | |
---|---|
Processor | Single-Core CPU |

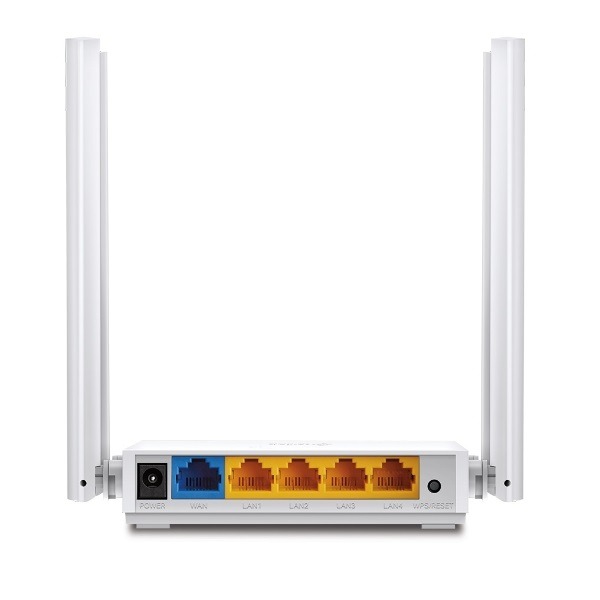

Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
Buttons | WPS Button Reset Button |
Power | 9 V ⎓ 0.6 A |
SECURITY | |
---|---|
WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping |
DHCP | Address Reservation DHCP Client List Server |
DDNS | NO-IP Comex DynDNS |
Management | Tether App Webpage |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 4.5 x 4.2 x 1.0 in (115 x 106.7 x 24.3 mm) |
Package Contents | Wi-Fi Router Archer C24 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
