Përshkrim
Specifications |
UPS type: line interactive |
Input: AC 162 – 295 V, 50 Hz / 60 Hz ± 10 % |
Output: AC 188 – 254 V, 50 Hz / 60 Hz ± 0.5 % (on battery) |
Waveform: sine wave (AC mains), simulated sine wave (battery) |
Temperature compensation: -20mV/1 °C (per cell) |
Switching time: no more than 10 ms |
Backup time: (8 to 20) min (depending on connected load) |
Battery: sealed lead-acid 12 V / 7Ah |
Charge time: up to 12 hours |

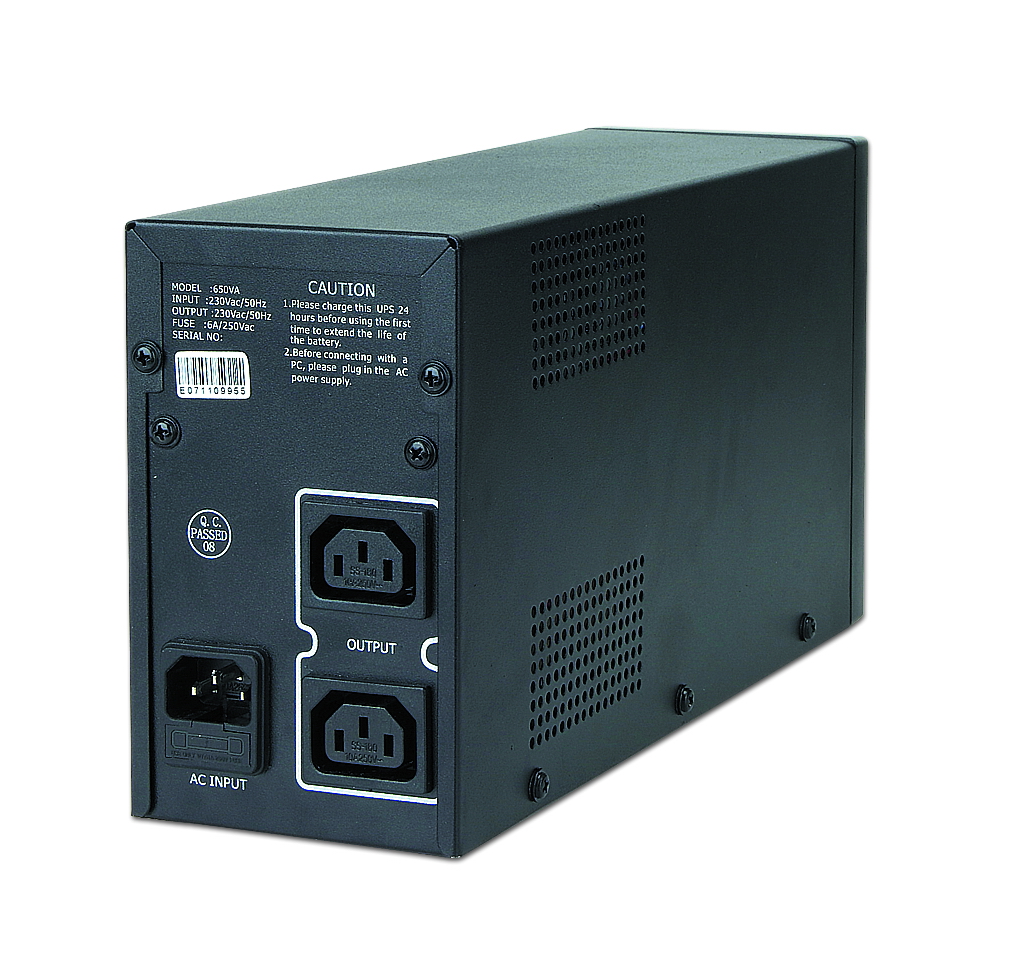

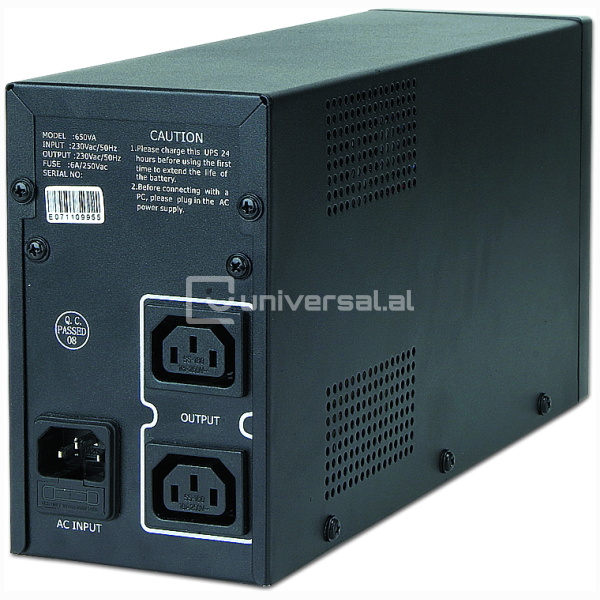

Sockets: 1x C14 input, 2x C13 output |
Operating conditions: 0°C to 40°C, at 20% to 90% humidity (RH non-condensing) |
Power: 650 VA (390 W) |
Dimensions: 320 mm x 160 mm x 95 mm |
Product weight: 4.8 kg |
“Cold-start” function |
System requirements
In order to work correctly, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
