| Functionality & Operation | |
| Communication interface | USB |
| 1D Barcode Symbologies | All standard one-dimension barcodes |
| 2D Code Symbologies | PDF417, Data Matrix, QR code, Aztec, MaxiCode, GS1 DataMatrix, GS1 QR Code |
| Optical | |
| Light source | visible red LED 617 nm |
| Depth of scan field | 0 ~ 24 cm |
| Minimum symbol contrast | 45% |
| Maximal pitch angle | 60° |
| Bar code scanner | 2D Imager |
| Electrical | |
| Power Source | +5 VDC ±5% |
| Power Consumption – Standby | 80mA |
| Power Consumption – Operation | 250mA |
| Mechanical | |
| Dimensions | Width: 70mm, Height: 175mm, Length: 97mm |
| Weight | 120g |
| Body housing | ABS plastic with rubber |
| Maximal rotation angle | 65° |
| Color | black |
| Environment | |
| Operating temperature | -20 to 50°C |
| Storage temperature | -40 to 80°C |
| Maximal ambient light | 100000lux |
| Operating humidity (non-condensing) | 5 to 95% |

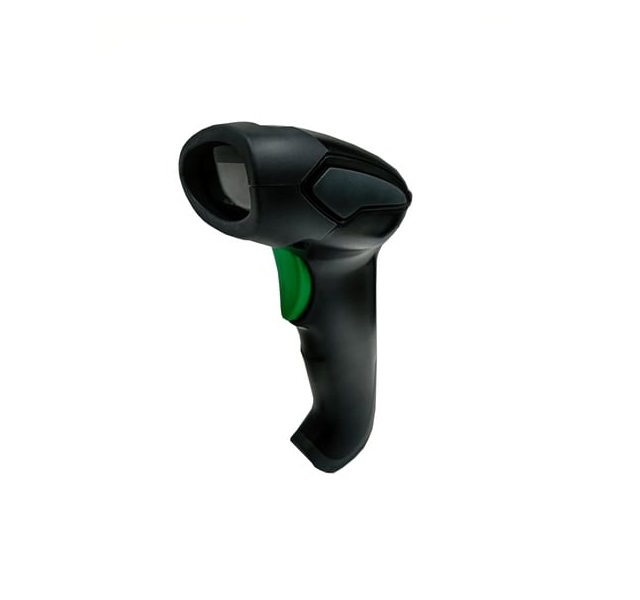

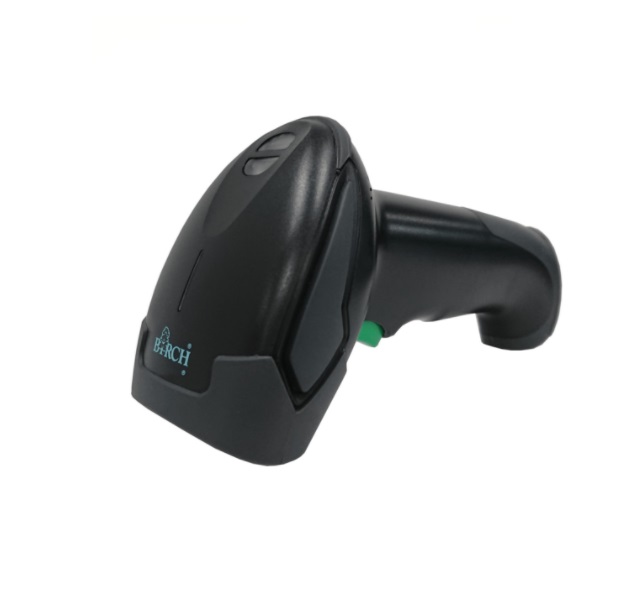

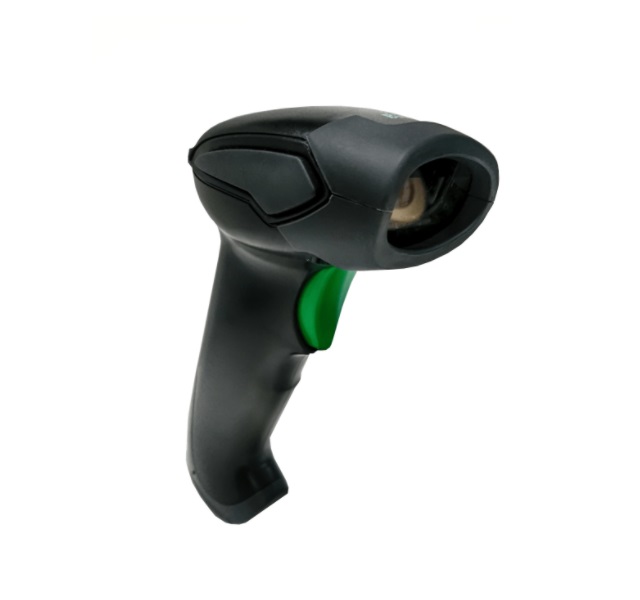

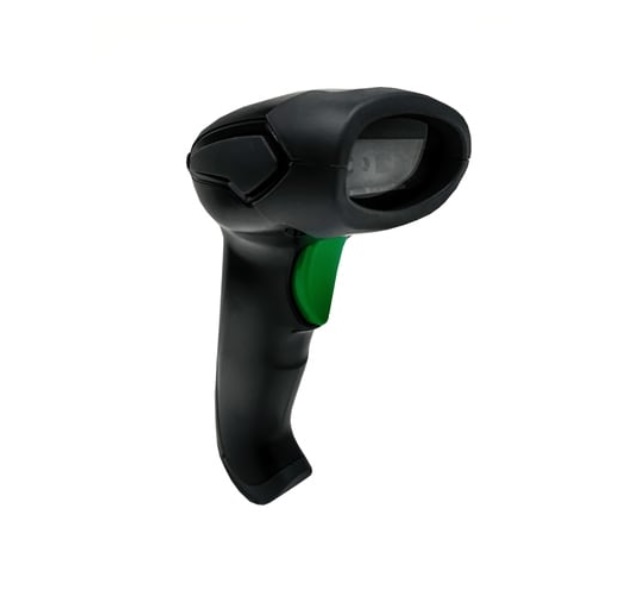

Skaner Dore 1d/2d Birch Bs-011bu
8,050 L
BS-011 është një nga produktet thelbësore për transformimin tuaj dixhital për të skanuar simbolet 2D / D përfshijnë kodet më të njohura PDF-417, DataMatrix dhe QR.
- Imazhi: CMOS 640 x 480
- Burimi i dritës: duke synuar 617 nmLRD, ndriçimi: 6500K LED
- Rezolucioni: Kodi 1D 39 (4 mil), kodi 2D QR (6.6 mil)
